• Wheels, 17" (43.2 cm) painted steel
• Tires, LT235/80R17E all-season highway
• Wheel trim, painted center caps
• Bumper, front chrome
• Grille, chrome surround
• Headlamps, high intensity discharge (HID) projector-beam with GMC signature LED lighting
• Lamps, Smoked Amber roof marker
• Lamps, cargo area, cab mounted with switch on center switch bank
• Mirrors, outside high-visibility vertical trailering, Black with manual folding and extension and lower convex spotter glass
• Glass, solar absorbing, tinted
• Door handles, Black

• Audio system, 7" Diagonal Color Touch Screen with IntelliLink, AM/FM with USB ports, auxiliary jack, Bluetooth® streaming audio for music and most phones, Pandora Internet radio and voice command pass-through to phone
• 6-speaker audio system
• Bluetooth® for phone, personal cell phone connectivity to vehicle audio system

• Seats, front 40/20/40 split-bench 3-passenger, driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. (Requires (H2Q) vinyl interior trim or (H2R) cloth, interior trim.)
• Seat trim, Vinyl
• Seat, rear 60/40 folding bench (folds up), 3-passenger, (includes child seat top tether anchor) (Requires Crew Cab models.)
• Floor covering, Graphite-colored rubberized-vinyl
• Steering column, manual Tilt-Wheel
• Steering wheel, base
• Driver Information Center 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information
• Windows, power with driver express up and down and express down on all other windows (Standard on Crew Cab models.)
• Door locks, power
• Cruise control, steering wheel-mounted
• Air conditioning, single-zone

• Brakes, 4-wheel antilock, 4-wheel disc with dual rear wheel with DuraLife brake rotors
• StabiliTrak, stability control system with Proactive Roll Avoidance and traction control, includes electronic trailer sway control and hill start assist
• Daytime Running Lamps with automatic exterior lamp control
• Airbags Crew Cab: Single-stage frontal airbags for driver and front outboard passenger. Regular Cab: Single-stage frontal airbags for driver and front outboard passenger (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Teen Driver configurable feature that lets you activate customizable vehicle settings associated with a key fob, to encourage safe driving behavior. It can limit certain vehicle features, and it prevents certain safety systems from being turned off. An in-vehicle report card gives you information on driving habits and helps you to continue to coach your new driver

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8

• B20-Diesel compatible (445 hp [332 kW] @ 2800 rpm
• 910 lb-ft of torque [1220 Nm] @ 1600 rpm) Includes (K40) exhaust brake and (K05) engine block heater.)

AIRBAGS

• Crew Cab: Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions. Regular Cab: Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions

• Preferred Equipment Group 1SA
• Cloth Seat Trim
• OnStar & GMC Connected Services Capable
• Front License Plate Kit
• Engine Block Heater
• Standard Suspension Package
• Integrated Trailer Brake Controller
• 110-Volt AC Power Outlet
• Deep-Tinted Glass
• Capped Fuel Fill
• GMC Connected Access
• Remote Keyless Entry
• Auto-Dimming Inside Rear-View Mirror
• Black Power-Adjustable Heated Outside Mirrors
• Exhaust Brake
• Floor-Mounted Shifter Transfer Case
• 6-Speaker Audio System
• GMC 4G LTE
• 4-Wheel Disc Brakes
• Premium audio system: GMC Infotainment System
• Front Center Armrest w/Storage
• High-Intensity Discharge Headlights
• Variably intermittent wipers
• Trip computer
• Traction control
• Tilt steering wheel
• Split folding rear seat
• Speed control
• Rear seat center armrest
• Rear reading lights
• Power windows
• Power steering
• Passenger vanity mirror
• Passenger door bin
• Overhead console
• Occupant sensing airbag
• Fully automatic headlights
• Front wheel independent suspension
• Front reading lights
• Front anti-roll bar
• Dual front impact airbags
• Driver door bin
• Delay-off headlights
• Bumpers: chrome
• Brake assist
• AM/FM radio
• ABS brakes
• Voltmeter
• Tachometer
• Electronic Stability Control
• Air Conditioning
• 6 Speakers

• Electrical
• Cold Cranking Amps @ 0° F (Primary): 730
• Cold Cranking Amps @ 0° F (Primary): 720
• Cold Cranking Amps @ 0° F (2nd): 730
• Maximum Alternator Capacity (amps): 150
• Maximum Alternator Watts: - TBD -
• Cooling System
• Total Cooling System Capacity (qts): - TBD -
• Weight Information
• Gross Axle Wt Rating - Front (lbs): 5600
• Gross Axle Wt Rating - Front (lbs): 4800
• Gross Axle Wt Rating - Rear (lbs): 9750
• Curb Weight - Front (lbs): 4070
• Curb Weight - Rear (lbs): 2764
• Gross Vehicle Weight Rating Cap (lbs): 13200
• Gross Combined Wt Rating (lbs): 31300
• Gross Combined Wt Rating (lbs): 21100
• Suspension
• Suspension Type - Front: Independent
• Suspension Type - Rear: 3-Stage Spring
• Spring Capacity - Front (lbs): 5600
• Spring Capacity - Front (lbs): 4800
• Spring Capacity - Rear (lbs): 9750
• Axle Type - Front: - TBD -
• Axle Type - Rear: - TBD -
• Axle Capacity - Front (lbs): 5600
• Axle Capacity - Front (lbs): 4800
• Axle Capacity - Rear (lbs): 9750
• Axle Ratio (:1) - Front: 3.73
• Axle Ratio (:1) - Rear: 3.73
• Shock Absorber Diameter - Front (mm): 51
• Shock Absorber Diameter - Rear (mm): 51
• Stabilizer Bar Diameter - Front (in): 1.31
• Brakes
• Brake Type: Pwr
• Brake ABS System: 4-Wheel
• Disc - Front (Yes or ): Yes
• Disc - Rear (Yes or ): Yes
• Front Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Rear Brake Rotor Diam x Thickness (in): 13.98 x 1.57
• Tires
• Front Tire Order Code: QQO
• Rear Tire Order Code: QQO
• Front Tire Size: LT235/80R17E
• Rear Tire Size: LT235/80R17E
• Front Tire Capacity (lbs): - TBD -
• Rear Tire Capacity (lbs): - TBD -
• Revolutions/Mile @ 45 mph - Front: - TBD -
• Revolutions/Mile @ 45 mph - Rear: - TBD -
• Wheels
• Front Wheel Size (in): 17 x 6.5
• Rear Wheel Size (in): 17 x 6.5
• Front Wheel Material: Steel
• Rear Wheel Material: Steel
• Steering
• Steering Type: Pwr
• Steering Ratio (:1), On Center: - TBD -
• Steering Ratio (:1), At Lock: - TBD -
• Turning Diameter - Curb to Curb (ft): 57.4
• Frame
• Frame Type: Hydroformed
• Fuel Tank
• Fuel Tank Capacity, Approx (gal): 23.5
• Aux Fuel Tank Capacity, Approx (gal): 40.0
• Fuel Tank Location: Front
• Aux Fuel Tank Location: Rear
• Exterior Dimensions
• Wheelbase (in): 171.5
• Length, Overall (in): 263.5
• Width, Max w/o mirrors (in): 80.51
• Height, Overall (in): 77.76
• Overhang, Front (in): 38.8
• Overhang, Rear w/o bumper (in): - TBD -
• Front Bumper to Back of Cab (in): 117.10
• Cab to Axle (in): 59.06
• Cab to End of Frame (in): - TBD -
• Ground to Top of Frame (in): - TBD -
• Frame Width, Rear (in): - TBD -
• Ground Clearance, Front (in): - TBD -
• Ground Clearance, Rear (in): - TBD -
• Interior Dimensions
• Passenger Capacity: 6
• Front Head Room (in): 42.8
• Front Leg Room (in): 45.27
• Front Shoulder Room (in): 64.84
• Front Hip Room (in): 60.73
• Second Head Room (in): 40.50
• Second Leg Room (in): 40.93
• Second Shoulder Room (in): 64.33
• Second Hip Room (in): 60.24
• Summary

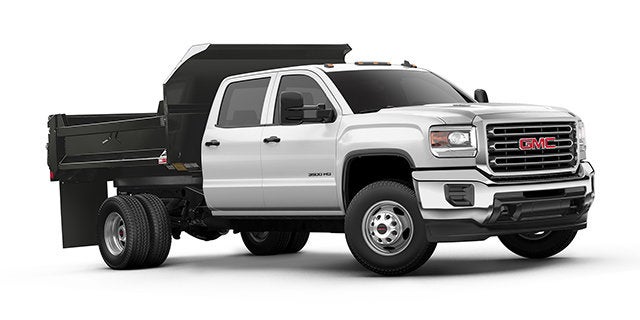

• Vehicle Name: GMC Sierra 3500HD CC
• Body Style: Crew Cab 171.5" Wheelbase
• Body Code: ZW9
• Emissions
• Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -
